To mix the sound on Italian singer/songwriter Gianluca Grignani’s latest tour, rental firm Idea Musica Service of Latina in central Italy fielded a DiGiCo system conceived by AudioProgetti, a company with its HQ in Cavenago Brianza (Milan) specializing in the design, supply and installation of pro audio systems.
Grignani began his successful career in 1994 and achieved national acclaim with his hit “Destinazione Paradiso” at the 1995 Sanremo song contest. His debut album, entitled after the single, was also a hit in South America and chalked up two million sales worldwide. That same year, he won an award as new artist of the year and has continued to surprise public and critics alike with his truly eclectic talent, passing from pop to almost experimental rock and soul-searching intimate songs. Never one to follow market trends, as well as topping the pop charts, he has shown his skills as a producer (an entire NY-recorded album), written for film soundtracks and won numerous awards, including one for the literary value of his lyrics and has exacting standards when it comes to audio production.
AudioProgetti’s technical manager Gabel Guagliumi explains how the system came about: “Idea Musica’s brief was to put together a complete touring control system with 56 input channels and 24 outputs, a single core for audio input\conversion (avoiding the additional cost and space required for splitters) and digital signal transport.
“We opted for a DiGiCo SD8 and DiGiRack setup because it enables us to have control of 60 input channels in the three sections of the console worksurface, the same excellent preamps as the DiGiCo SD7 and D5, a modular stage rack that can be customized in groups of eight channels – in this specific case there are seven groups – and signal transport via MADI. Since monitor consoles normally have more gain-related problems, such as feedback, it was decided that it should be the set-up’s ‘master’ desk and the FOH console the ‘slave’.”

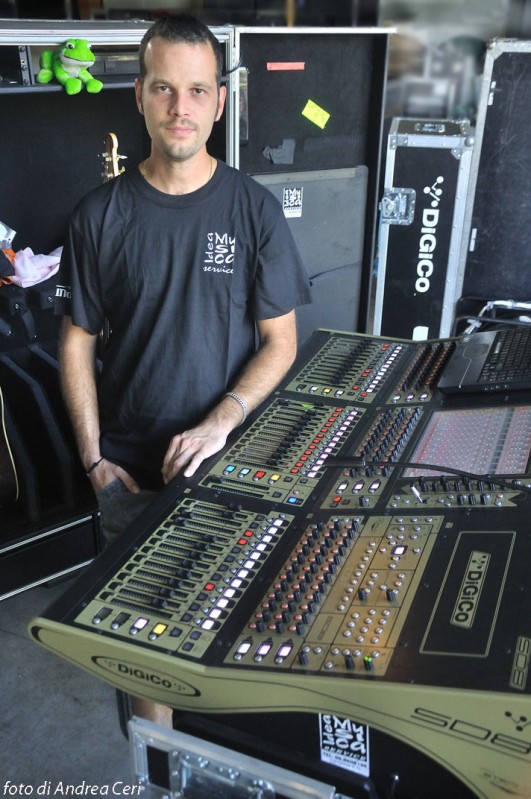

Helming the SD8 on-stage, monitor engineer Paolo Zanier was on his first outing with a DiGiCo console. “I must say they’ve designed a top quality system,” he enthuses. “The preamplifiers and A/D and D/A converters in the DiGiRack at the heart of the system do their job excellently, enabling engineers to obtain a great sound timbre and body without having to resort to excessive EQ.”
Zanier and FOH engineer Alessandro Catrucci use the system’s Gain Tracking feature, so that when the former changes an analogue gain control on the his desk, the FOH console reflects the changes and the digital trim control compensates for them by moving by the same amount in the opposite direction.
Among the other features Zanier found extremely useful was the possibility of working on the monitor signals of the artist and his band (with the send levels assigned to the channel faders in the console’s Solo functions) and being able to call up the function extremely rapidly. He was also pleased with the worksurface’s layout and features, which enabled him to work on any channel of any bank while keeping a specific, important channel in one of the other sections constantly under control – such as the artist’s main vocal channel. He also found the system’s software rapid and intuitive. “It’s as if it had been conceived precisely for my customary modus operandi,” he smiles.
Another SD8 facility greatly appreciated by Zanier was the possibility of adjusting several channels simultaneously. “Pressing and holding the Option/All button in the centre control section, the parameters adjusted on one channel are adjusted in the same way on all the other channels in the same bank,” he says. “This is really useful when using a set of identical mics for a chorus, for example.”
As well as feedback related issues, Zanier cited two more reasons for having decided to use the monitor desk as the master console.
“Firstly, all the Line outs are used for the monitors and, since the distribution of the in and out signals is via MADI, a coax cable is necessary to send the signals to the FOH desk and the other kept as a spare,” he explains. “We use 18 of the 24 Line outs for the actual monitor system, which features a combination of speakers and IEM, plus a premix of the two click tracks fed to the drummer.”
Although the band has a reasonably standard line-up, with drums, bass, two sets of keyboards and lead guitar, the artist also plays guitar, which is fed into two amps, each with its own cabinet, thus using either of the sounds or a combination of both. There are also fourteen sequence channels (percussion, pad and other material). So there are 52 input channels, plus six more used only on stage, including two click tracks and other split channels.
Zanier concludes: “We’re pushing the desk hard and it hasn’t given the slightest problem, so I’d like to be able to use it again in the future, as it has allowed us to carry out our work with excellent results and great interaction.”
