H40R truss
What if you were to combine the best features of Prolyte Group’s top selling trusses and merge them into something new? Prolyte frequently receive enquiries for a smaller truss with a higher loading capacity and has masterminded the perfect solution. Their team of engineers have designed the H40R truss, a rectangular standard H40 truss with a very clever programme of specifications based on the H30V, H40V and S36R truss.
Compact and strong
The H40R has three-sided webbing. The thicker braces on the bottom side allow easy mounting of automated luminaires/moving heads and central loading, reducing the torsion effect resulting from one-sided loading in standard trusses.
The spigot orientation follows that of the S series truss, allowing easy assembly while the truss is still on the floor.

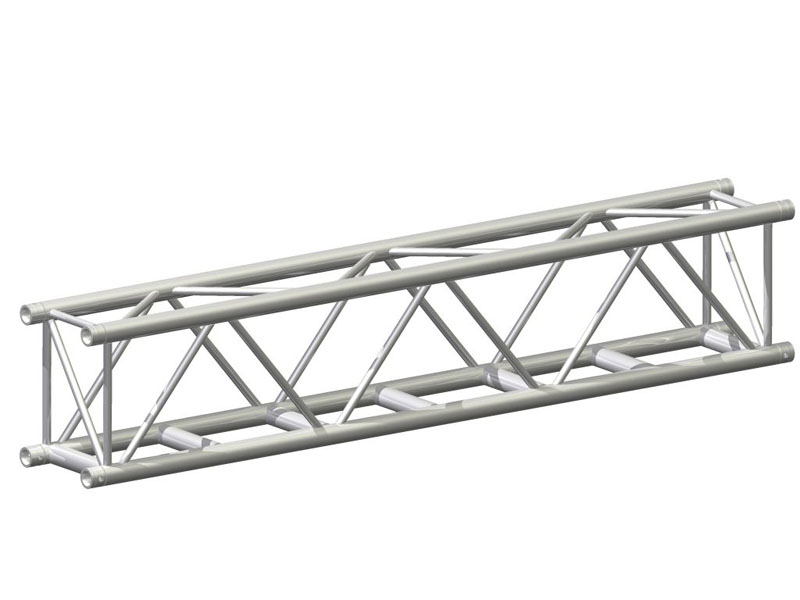

The H40R measures 339mm high by 239mm wide. The diagonals are placed to allow room for a 30D truss to rest on the bottom chords. The loading rate is comparable to the H40V, taking into account that, due to the three-sided webbing, lateral forces are limited. The H40R is available in 3 standard lengths of 1,2, and 3 metres, plus a box-corner.
Specifications:
Main chords 48x3mm,
Bottom braces 48x3mm
Diagonals 20x2mm
Coupling system: CCS6
Available in:
Lengths: H40R-L100, H40R-L200, and H40R-L300

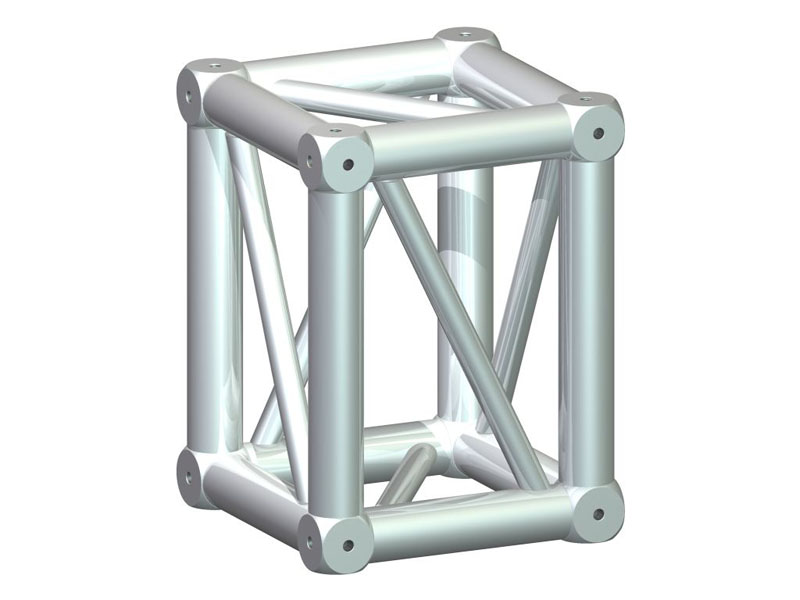

Corners: BOX-40R
